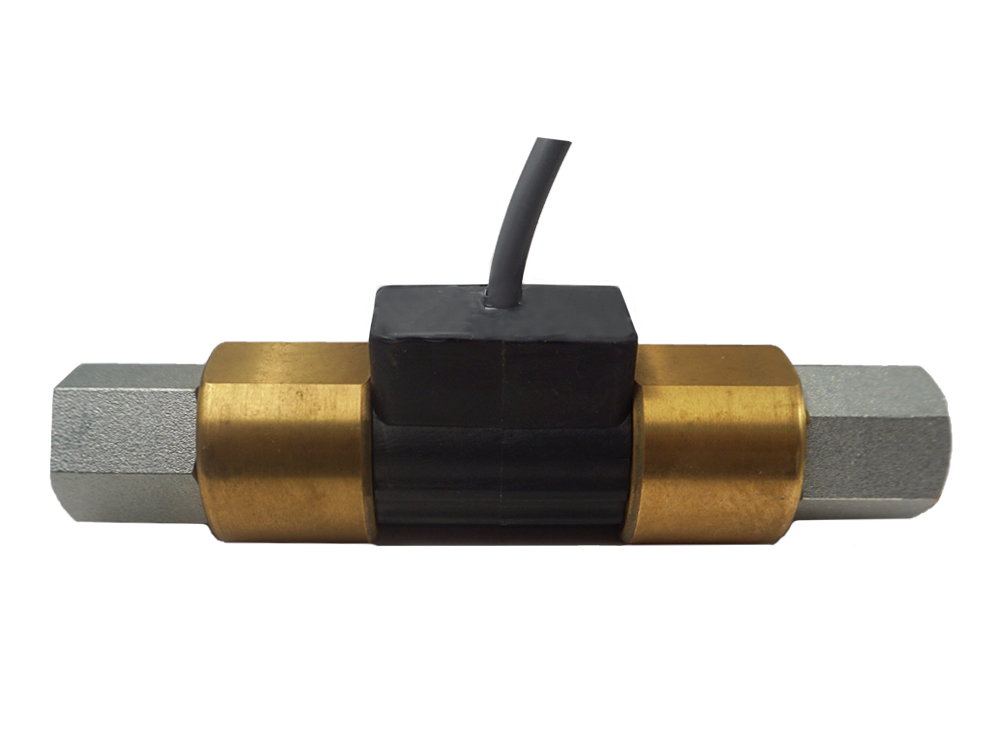

FS-B Bidirectional Flow Switch

Part Number: 254300
Bidirectional_Flow
Image is of similar product

PRODUCT DESCRIPTION:

This inline flow switch is a flow/no flow device with the ability to detect flow in either direction. It is key for applications where detection of flow direction is desirable or where undesired reverse flow is possible and must be prevented to avoid system damage. The FS-B is capable of rigorous application demands, high temperatures, media compatibility, and low pressure drop.

  • Direction Indication Inline Flow Switch
  • Ability to detect flow in either direction
  • Key for applications where detection of flow direction is desirable or where undesired reverse flow is possible and must be prevented to avoid system damage
  • Product capable of rigorous application demands; high temperatures; media compatibility; and low pressure drop

Features

  • Direction Indication Inline Flow Switch
  • Ability to detect flow in either direction
  • Key for applications where detection of flow direction is desirable or where undesired reverse flow is possible and must be prevented to avoid system damage
  • Product capable of rigorous application demands; high temperatures; media compatibility; and low pressure drop
SKU
254300
Sensor Type
Flow Switch
Model
FS-B
Primary Material Of Construction
Brass
Body Material
Brass and 316 Stainless Steel
Wetted Materials
Brass, Epoxy, 316 Stainless Steel, Buna N
Maximum Pressure
1000 PSI (69 bar)
Minimum Temperature
-20°F
Maximum Temperature
221°F
Flow Setting
Normally Open at No Flow; Closes at 0.35 GPM Max
Flow Setting Range
Normally Open at No Flow; Closes at 0.35 GPM Max
Set Point Differential
20% Maximum
Switch Type
SPST, 10VA, N.O. at no Flow
Port Size
3/8" NPT
Electrical Termination
4-conductor, 22 AWG, PVC Cable
Weight
1 lb 5 oz

Gems Sensors Catalog, Bidirectional Flow Switch

Format .pdf
Size 247 KB
  • Aerospace - Hydraulic Systems
  • General Industry - Automotive
  • General Industry - Car Wash Equipment
  • General Industry - Hydraulics
  • General Industry - Machinery
  • General Industry - Other
  • General Industry - Service Cart
  • Transportation - Automotive
