Pressure Switches & Transducers

3500 Series Pressure Transducers

Part Number:
3500_Transducer

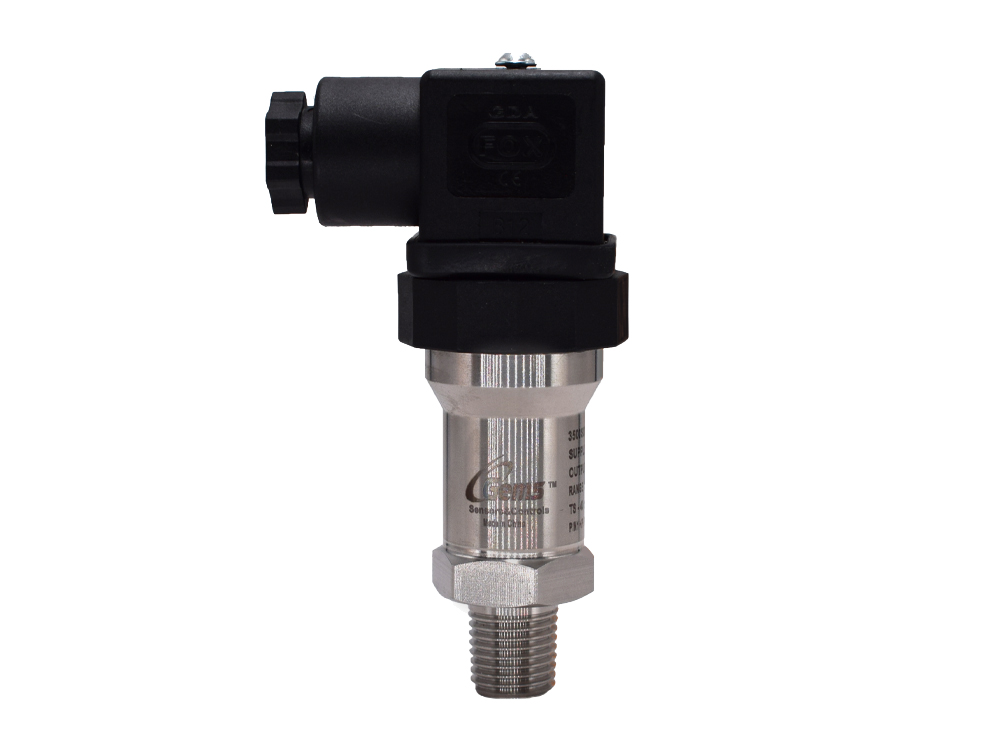

Image is of similar product

PRODUCT DESCRIPTION:

3500 Series Pressure Sensors feature all-316 stainless steel wetted parts and a wide choice of electrical outputs as well as both electrical and pressure connections making this suitable for most applications without modification. Their small size makes of 3500 Series sensors ideal for installation where space is at a premium. The MMS sensor used in these sensors quickly reaches full accuracy at power-up, making this series excellent for remote, battery-powered installations, where power draw and time must be minimized.

  • 0-5 to 0-600 psi pressure ranges (0-0.35 to 0-40 bar)
  • 0.25% Full Scale Accuracy
  • < 0.2% Long Term Drift
  • Choice of outputs electrical connections and pressure ports
  • Operating temperature up to 257°F (125°C)

Features

  •  0-5 to 0-600 psi pressure ranges (0-0.35-0-40 bar)
  • 0.25% Full-Scale Accuracy
  • < 0.2% Long Term Drift
  • Choice of outputs electrical connections and pressure ports
  • Operating temperature up to 257°F (125°C)
Sensor Type
Strain Gauge (MMS)
Purpose
High Accuracy
Minimum Temperature
-40°F
Maximum Temperature
176°F
Minimum Pressure
5 psi
Maximum Pressure
600 psi

Gems Sensors Product Resource, 3500 Series RoHS 3 Certificate

Format .pdf
Size 19 KB

Gems Sensors Instructions, 35XX

Format .pdf
Size 49 KB

3500 Series Product Guide

Format .pdf
Size 2 MB

Gems Sensors Catalog, 3500 Series Pressure Transmitter

Format .pdf
Size 1 MB
  • Agricultural Equipment
  • Food & Bev Equipment
  • Food & Beverage - Brewery
  • General Industry
  • General Industry - Chemical Metering/Injection
  • General Industry - Cleaning Equipment
  • General Industry - Environmental
  • General Industry - Fire Suppression
  • General Industry - Gas Delivery
  • General Industry - Machinery
  • General Industry - Test & Measurement
  • HVAC/R - Chillers
  • HVAC/R - Refrigeration
  • Marine - Commercial - Aftermarket
  • Marine Vessels
  • Medical - IVD
  • Medical - Lab
  • Medical - Laboratory & Testing
  • Medical - Sterilization
  • Medical Equipment
  • OHV - Fertilizer
  • Process Industry - Process Tanks
  • Process Industry - Sanitary
  • Storage Tanks
  • Water & Waste Water - Groundwater Monitoring
  • Water & Waste Water - Industrial Water Treatment
  • Water & Waste Water - Other
  • Water & Waste Water - Point of Use
  • Water & Waste Water - Pumps
  • Water & Waste Water - Water Distribution
