Disclaimer: Please note, all information on this page referring to EP, XP, explosion Proof, Factory Mutual, or FM approval are for reference purposes only. Explosion proof products and part numbers for these models are obsolete and no longer available to purchase from Gems.

SureSite Switches Wiring Guide

suresite-switches1

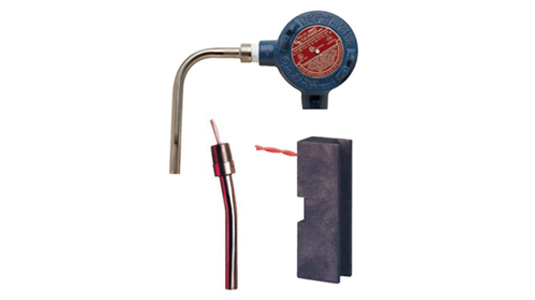

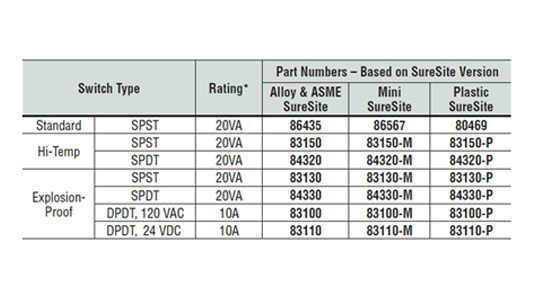

This guide covers the wire connections diagram for SureSite standard switch, high temperature switch, and explosion proof switch for alloy, plastic, and mini versions.

suresite-switches2

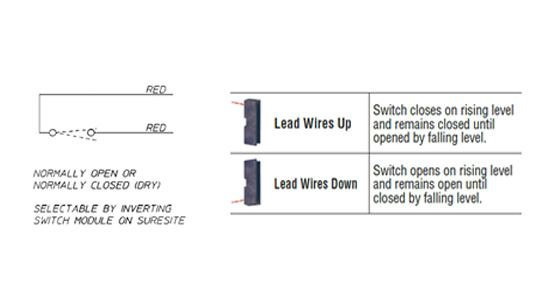

Standard Switch, SPST:

86435, 86567, 80469suresite-switches3

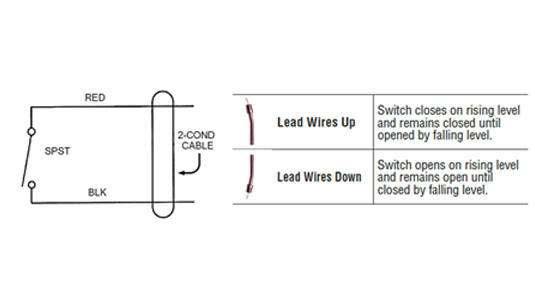

Hi-Temp Switch, SPST:

83150, 83150-M, 83150-P

suresite-switches4

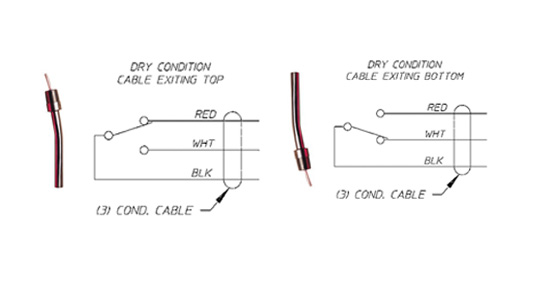

Hi-Temp Switch, SPDT:

84320, 84320-M, 84320-P

suresite-switches5

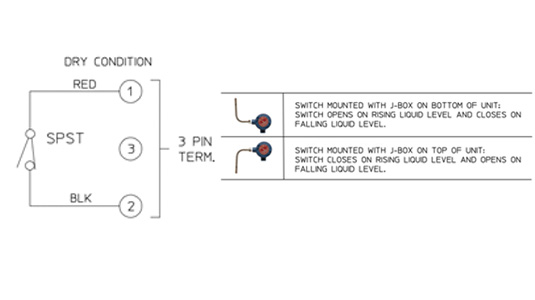

EP Switch, SPST:

83130, 83130-M, 83130-P

suresite-switches6

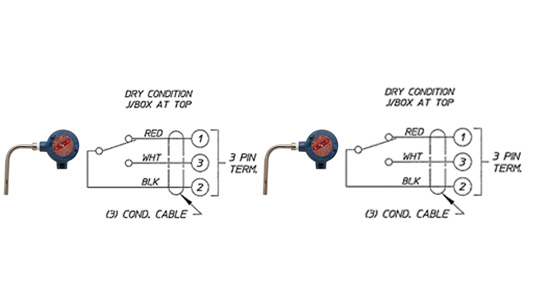

EP Switch, SPDT:

84330, 84330-M, 84330-P

suresite-switches7

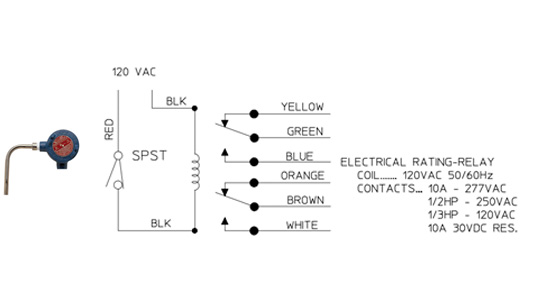

EP Switch, DPDT 120VAC:

83100, 83100-M, 83100-P

suresite-switches8

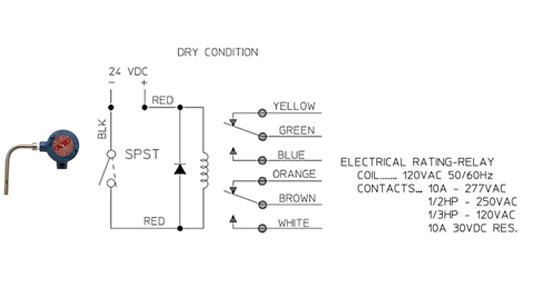

EP Switch, DPDT 120VDC:

83110, 83110-M, 83110-P

suresite-switches9

SureSite switch clamps part numbers found HERE.
