FT-110 Electrical Connectors Explained



Gems FT-110 Flow Turbine sensor is available with two electrical connection options, Cable or DIN.  The cable is 24 AWG 3 conductor, 3’ long.  The DIN is a Form C, Industrial Type (Micro), with 9.4mm spacing.

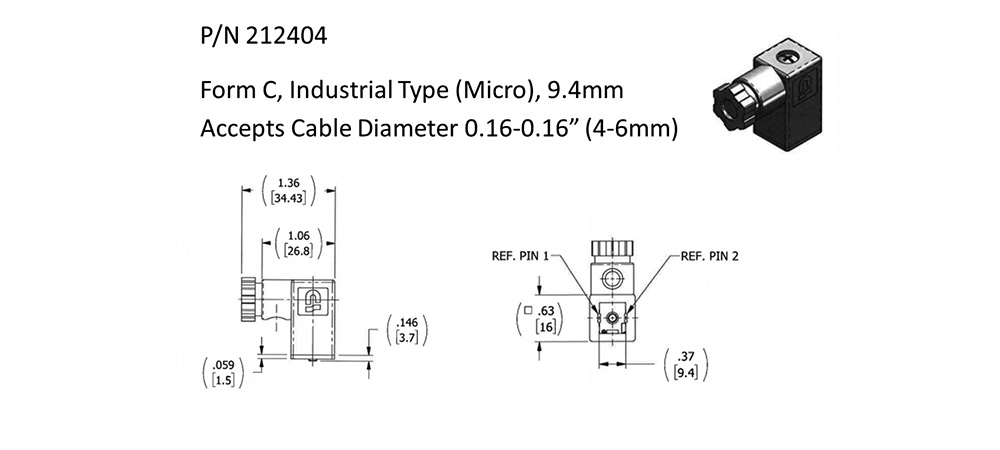

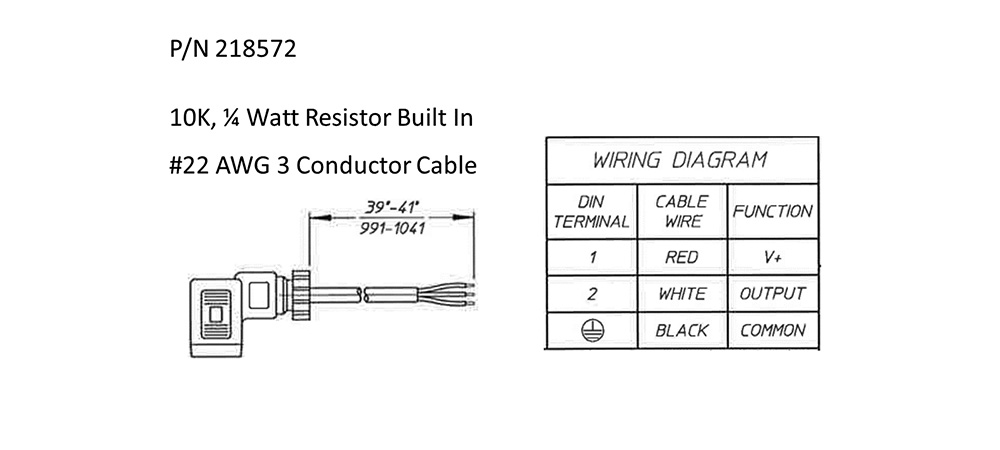

The below diagrams help explain the two accessories that can be ordered when selecting the DIN option.  P/N 218572 will include the DIN connector, with a built-in 10K, ¼ Watt resistor, and with approximately 1m of cable.  P/N 212404 is just the Form C Mating DIN connector.



ft110-2



ft110-1



Please refer to the instruction bulletin for further installation instructions.
