Standard Alloy SureSite
The SureSite Standard Alloy Visual Level Gauges have a rugged,welded construction that make these 2-1/2†(64 mm) diameter design.

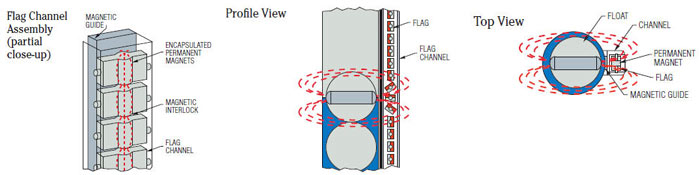

SureSite® Flag Assembly and Integrated Magnetic Guide
SureSite® Indicators Are Superior To Other Magnetic Type Indicators
Here's Why:
It begins with a patented Flag Assembly and integrated Magnetic Guide.
Many Magnetic flag type indicators look the same, but look closer and you'll see they are not made the same. SureSite® Indicators are unique. They incorporate a patented design and special features that provide the ultimate in performance and reliable operation.
- A permanent magnet, encapsulated into each flag, forms a secure magnetic interlock with adjacent flags. Proper alignment is assured, and is unaffected by shock, vibration, surges, or rapid level changes.
- A Magnetic Guide (a SureSite® exclusive) enables the use of a more powerful bar magnet in the float assembly. The guide is integrated into the flag channel, so regardless of positioning, the bar magnet within the float is always aligned for optimum performance and exactness.
- A powerful, permanent bar magnet lies in a horizontal position within the float. This preferred attitude directs the flux density of the magnetic field toward the flags. Flag rotation is positive and reliable.
- Float capability to handle liquid specific gravity range as low as 0.40.
Featured
Products

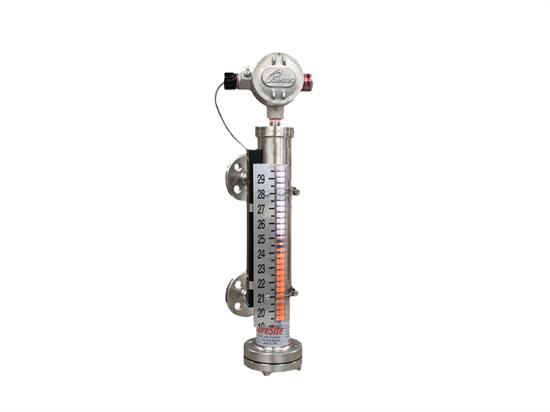

LED SureSite
The LED SureSite Level Indicators feature stainless-steel process fluid containment and combines a continuous output transmitter with a bright LED channel.
Miniature Alloy SureSite
The SureSite Mini-Alloy Visual Level Gauges are for use where space is tight and feature a diameter of only 1-1/4†(32 mm).
Plastic SureSite
The SureSite Plastic Visual Level Gauges feature a 2†(51 mm) design that is ideal for almost any liquid where temperature and pressure requirements are moderate.
High Performance SureSite
The SureSite High Performance Visual Level Gauges are certified for demanding applications and feature ANSI flanges and fittings and construction to rigorous ASME standards.
