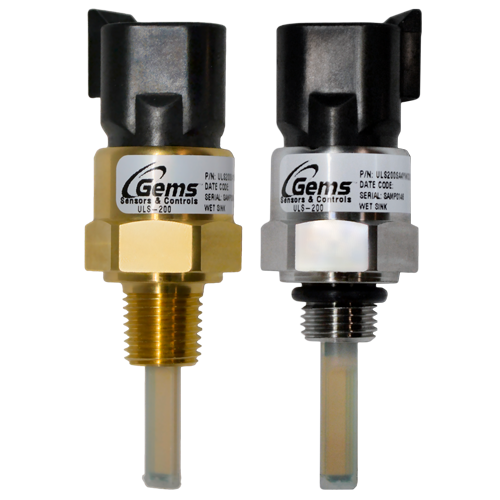

Introducing Our ULS-200 Solid-State Point-Level Sensor


Introducing the ULS-200 Solid-State Point-Level Sensor, a highly advanced and durable sensor designed for use in aqueous, oil, and hydrocarbon applications. With a wide temperature and pressure range, it is tolerant of coating and build-up, making it an ideal choice for tough environments. Its solid-state technology ensures a longer life expectancy and a more reliable performance. Standard configurations include a range of time delays for greater customization and flexibility.


Sensor Benefits

  • Reliable – Accurate and repeatable point-level detection using advanced sensing technology with electronic solid-state switching
  • Durable – Withstands harsh conditions and outdoor environments with IP6K9K rating, wide temperature range, and high-pressure capability
  • Versatile – Reduces inventory and simplifies product selection by replacing several different sensor types with the ULS-200 for aqueous, oil, and hydrocarbon-based media
  • Time Delays – Standard configurations include:  No delay, 3 sec, 5 sec, or 10-second time delays

Part Number Configuration

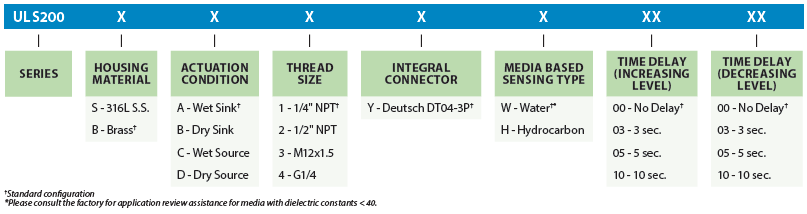

ULS-200 Part Number Configuration Chart

Sensing Fluids

  • Coolant
  • Hydraulics
  • Engine Oil
  • Windshield Washer Fluid
  • Water (Grey, Black, Storage)
  • Power Steering and Transmission Fluids
  • Diesel

Applications

  • Excavators, Earthmovers, Backhoe
  • Harvesters, Sprayers, Planters
  • City Buses, Luxury buses, Touring Buses
  • Fire Trucks, Ambulances, Vacuum Trucks
  • Mining, Military Vehicles, Forestry
  • Power Generation, Renewable Energy
  • Data Centers - Liquid Cooling

Product Technology Comparison


 FLOAT-TYPETYPICAL
CAPACITIVE-TYPE
ELECTRO-OPTICULTRASONICULS-200
MEDIA DETECTEDAqueousFull_BlueFull_BlueFull_BlueFull_BlueFull_Orange
HydrocarbonFull_BlueEmpty_BlueFull_BlueFull_BlueFull_Orange
Low DielectricFull_BlueEmpty_BlueFull_BlueFull_BlueFull_Orange
ENVIRONMENTALHigh HumidityFull_BlueFull_BlueEmpty_Blue1-2_BlueFull_Orange
High PressureFull_BlueFull_BlueFull_BlueFull_BlueFull_Orange
High ReflectionFull_BlueFull_BlueEmpty_BlueFull_BlueFull_Orange
High ViscosityEmpty_BlueFull_Blue1-2_Blue1-2_BlueFull_Orange
SPECIAL CONSIDERATIONBuild-Up PreventionEmpty_BlueFull_Blue1-4_Blue1-2_BlueFull_Orange
Mounting OrientationEmpty_Blue3-4_Blue1-2_Blue1-2_BlueFull_Orange
Time DelaysEmpty_BlueEmpty_BlueEmpty_BlueEmpty_BlueFull_Orange


View Full Product Technology Comparison >


Get Started

Customize Your ULS-200

Customize your sensor to fit your application by selecting materials, fittings, and dielectric.


Configure Now >



ULS-200 Models
