Point level switches are often used as a warning indicator to trigger an alert when a fluid level is either too high or too low within a tank or vessel. A single point level switch detects if a predetermined single liquid level is reached and actuates a switch to notify a user. Single point level switches are available in multiple sensing technologies including float, electro-optic, ultrasonic, capacitive, and water in fuel.
Types of Single Point Level Switches
![capacitive single point level sensors capacitive single point level sensors](/images/default-source/product-family-images/capacitive.tmb-small.jpg?sfvrsn=467a2bb9_1)

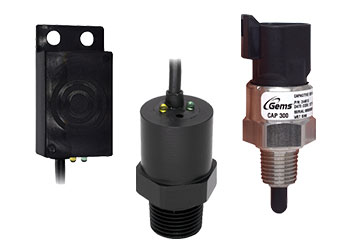

Capacitive Single Point Level Switches
Gems Capacitance sensors are frequency-tuned for liquid detection. Most are noncontact models that sense from outside a fluid vessel's wall and offer adjustability to operate accurately with both aqueous and non-aqueous liquids.
Capacitance Switch Models
![SP - Float SP - Float](/images/default-source/default-album/landing-pages/product-overview/level/single-point/sp---floata67369905e8b4e8c85fc88252ff82b2f.jpg?sfvrsn=2cdb80a8_2)

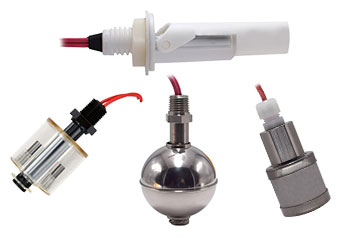

Float Single Point Level Switches
A float level sensor contains a float magnet that travels freely along a stem as the level of liquid rises or falls, and a switch is activated based on the magnetic field that is generated.
Float Level Switch Models
![SP - Electro-Optic SP - Electro-Optic](/images/default-source/default-album/landing-pages/product-overview/level/single-point/sp---electro-optic44a440eda0624fb68d75a879a5074a5b.jpg?sfvrsn=72c639cb_2)

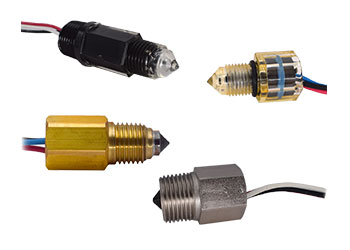

Electro-Optic Single Point Level Switches
Electro-optic liquid level sensors feature a small footprint for anywhere space is at a premium. Solid-state switching delivers dependability over a long service life.
Electro-Optic Switch Models
![SP - Ultrasonic SP - Ultrasonic](/images/default-source/default-album/landing-pages/product-overview/level/single-point/sp---ultrasonic3cc07092be9049e5bf60c86cf158f1ef.jpg?sfvrsn=ba89a794_2)

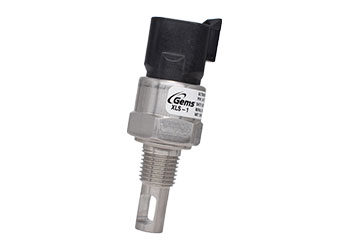

Ultrasonic Single Point Level Switches
Ultrasonic switches are non-contact and work by emitting high frequencies that are reflected back and measured. Gems ultrasonic switches and transmitters are ideal for applications requiring solid-state level measurement, such as those with ultrapure, dirty, coating, scaling, or corrosive-type liquids.
Ultrasonic Switch Models
Single Point Level Switch Applications and Industries
Single Point level switches can be found in the following industries:
