Introducing KS98-Rail: Comprehensive and Sophisticated Process Control

Precision, Flexibility, and Reliability in Process Automation



Versatile Hardware

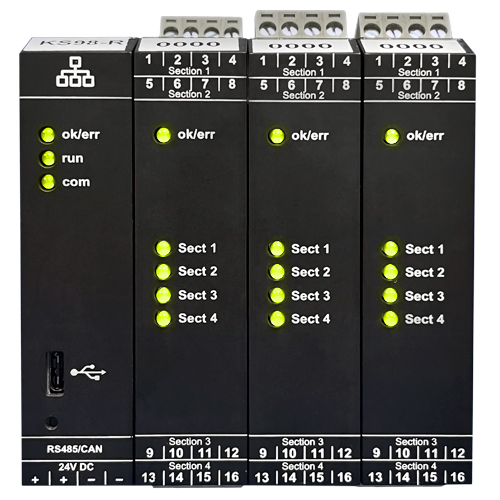

Experience unparalleled precision with our state-of-the-art KS98-Rail process controller by PMA. The KS98-Rail is a top hat rail mountable, behind-panel process control and data acquisition system based on the KS98-2 system design. This device ensures constant optimal performance and directly supports most sensors and galvanic isolations, eliminating the need for additional signal transmitters. Say goodbye to extra costs and complexity and trust the KS98-Rail to deliver a seamless, cost-effective solution that elevates your application to the next level.

Comprehensive Programming

The KS98-Rail offers a user-friendly graphical engineering tool with embedded process simulation, making application programming straightforward and efficient. The function-block editor, complete with a library of control functions, allows you to compile, test, and optimize your control strategies. Streamline your workflow and achieve optimal performance quickly, making the KS98-Rail an ideal solution for the process industry.

Remote or Connected Access

Using the KS98-Rail's remote access capabilities, maintain and troubleshoot with ease. Connect via a network or USB front interface to perform fast parameter adjustments and identify issues promptly. This feature ensures efficient maintenance, reducing downtime and enhancing overall productivity.

Flexible Control System

Engineered for top hat rail mounting, the KS98-Rail is a highly versatile process automation system. Its flexible inputs and outputs adapt to the unique needs of any application. With optimized functionality, reliability, and cost-effectiveness, the KS98-Rail is the perfect foundation for any automation solution.


Key Features of KS98-Rail :

  • Scaling & Linearization of Measured Signals
  • Self-Tuning Controllers: Auto/Manual, Parameter-Set, Setpoint Selection & Limitation Functions
  • Modular Programmer: Multiple recipes, Auto/Manual operation, Master/Slave tracks, and more
  • Math & Logic Functions
  • Datalogger & Event Logger Functions: Record process values and events over time with timestamp
  • Clock Functions
  • Flexible I/O with Ethernet Communication: Supports up to 60 control loops and 15 I/O slots, complementing PLC systems.
  • Measurement Accuracy & Proven Control Algorithms: High precision and reliability in process control.
  • Fully Modular, Expandable & Scalable System: Ready to meet the demands of tomorrow.

Applications:

The KS98-Rail is a valuable solution for applications where process control performance is crucial, including:


KS98-Rail Specifications:

  • Power Supply: 24 VDC Powered CPU
  • Control Capability: Up to 60 control loops
  • USB Host Interface
  • Communication Options:
    • Ethernet
    • USB
    • CAN
    • RS485
  • I/O Units: Up to 15 units, including:
    • Analog Inputs: Universal, Resistive, Thermocouple, Voltage
    • Analog Outputs: Linear Voltage, Linear Current, Bipolar
    • Digital I/O: 24V Digital, SSR Driver
    • Relay Outputs
