In order to measure the amount of a fluid in a given container, many opt to use a level sensor. But what kind of level sensor is right for your application? Finding the right sensor depends on the environment as well as the fluid being measured. To help with that process, we’ll walk through the different types liquid level sensors and discuss how they work.

But before getting into specifics, it’s useful to break down level sensors according to their functionality. Broadly speaking, there are two main types: continuous and point level sensors. For applications where continuous level measurement is needed—such as fuel tanks and storage containers—continuous level sensors indicate the fluid level within a span in a given vessel.

The other main type of sensor is a point level sensor, which indicates whether a fluid is above or below a specific point. Often a point level switch is used as a warning indicator, triggering an alert in situations where a fluid level is either too high or too low and maintains level between two points.

Point Level Sensors

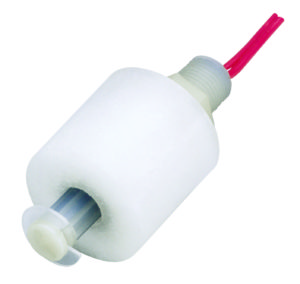

Point level sensors are available in various options and for a range of applications and materials. For example, Float level sensors are straightforward, and work on a simple principle. In most cases, a float containing a magnet travels freely along a stem as the level of liquid rises or falls, and a switch is activated based on the magnetic field that is generated. Reed switches are often used in float level sensors due to their durable construction and precise measurement (less than one percent deviation).

Optical level sensors are another option for applications that require a point level sensor. Optical switches work for either high, low, or intermediate level detection, and work well for practically any installation. Unlike float level sensors, there are no moving parts in an optical level sensor. Instead, they work by transmitting infrared light via an LED, and calculating changes in level based on the amount of reflected light. Optical level sensors can be built to withstand high temperatures and come in a range of sizes to suit many different applications.

For reflective, sticky, or viscous fluids, capacitive level sensors work very well. They can be custom calibrated and are available in many different sizes and materials, including versions made of safe materials approved for food service use. Capacitive level sensors work by measuring changes in capacitance—the ability to store an electric charge—and can be used with water-based or non-aqueous fluids.

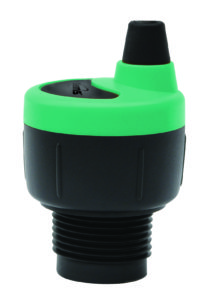

If your particular application requires a rugged point level sensor, an ultrasonic sensor is an ideal choice. With no moving parts, ultrasonic switches are able to operate in everything from oils to inks. Ultrasonic switches are non-contact, and work by emitting high frequencies that are reflected back and measured. Because of this, ultrasonic switches can withstand high pressure and temperature, as well as vibration. They are particularly suited for applications in agriculture, mining, construction, printing, or specialty vehicles.

Continuous Level Sensors

A point level switch indicates specific fluid levels but for continuous level measurement and monitoring through a range, a continuous level sensor is needed. Using similar technology to the float and ultrasonic level sensors described above, we can also continuously measure liquid levels using continuous float level transmitters or ultrasonic level sensors. Additionally, potentiometric and magnetostrictive level sensors can provide alternative methods of continuous level measurement

In cases where the fluid being monitored is electrically conductive and extremely quick measurements are needed a potentiometric level sensor may be the best option. They work by transmitting an electric current through a sensor electrode and measuring electrical resistance. Potentiometric sensors are unaffected by pressure, density, or temperature, and can be highly accurate. Potentiometric sensors can be used to measure the fill level of a liquid—or in the case of two liquids with different densities—the separation level between liquids.

Magnetostrictive level sensors are somewhat similar to float sensors, at least in terms of their construction. A magnet sealed inside a float moves along a stem containing a wire. The magnetic field generated by the float generates a pulse which travels down the wire. The time it takes that pulse to travel correlates with the float’s position in the tank, indicating level. Because of the accuracy and speed of magnetostrictive level sensors, they are often used to measure quantities of liquids transferred in commercial transactions and other highly-regulated situations where extremely accurate continuous level measurement is needed.

When choosing a liquid level sensor, it is important to consider the strengths of each type of sensor or switch for your particular application. Aside from the underlying mechanism of action, you need to take into account the materials—particularly when measuring corrosive materials—as well as the viscosity of the fluid that is being monitored.
